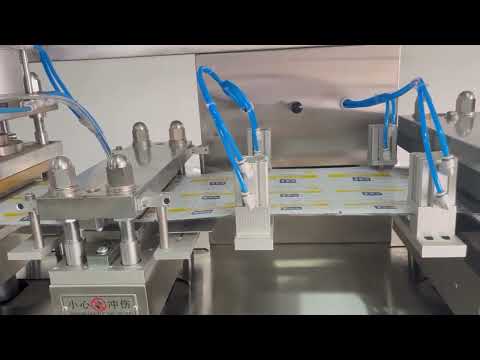

A typically industrial blister packaging machine for food and chemical products. The blister machine is characterized by high automation during installation and startup, thanks to a simple control panel. Cooperation with a photocell allows for centering graphics on aluminum foil according to the blister. The blister machine can produce one large blister per cycle or several smaller blisters, such as 4-6 blisters at a time. This model can be used for producing ALU PVC, ALU ALU, PVC PAPER blisters.
Product Features
- User-friendly control panel
- High-quality components ensure trouble-free operation
- Sensitive photocell facilitates work
- Servo motor provides continuous operation
- Adjustable working speed
- Pneumatic parts have original solenoid valves and cylinders
Technical Data
| Specification | Silver 270 | Silver 360 |
|---|---|---|
| Cutting frequency (number/min) | ALU-PVC: 10-40 | ALU-ALU: 10-20 | ALU-PVC: 10-40 | ALU-ALU: 10-20 |
| Performance (pcs/h) | ALU-PVC: 4 000 – 7 000 | ALU-ALU: 2 000 – 3 000 | ALU-PVC: 6 000 – 9 000 | ALU-ALU: 3 000 – 5 000 |
| Advance (mm) | 30 – 130 (150) | 30 – 150 (180) |
| Max. blister size | 270 * 130 (150) * 30 mm (40) mm | 360 * 150 (180) * 30 mm (50) mm |
| Air consumption | ≥0.38m⊃3;/min | ≥0.42m⊃3;/min |
| Power supply | 380V/50Hz | 380V/50Hz |
| PVC foil (mm) | 180* (0.15-0.5) | 360* (0.15-0.5) |
| ALU foil (mm) | 180* (0.02-0.035) | 360* (0.02-0.035) |
| Dimensions (mm) | 2850 * 550 * 1450 | 4560 * 740 * 1700 |
| Weight (kg) | 1700 | 1700 |
